Field type: multiple select

The multiple select (aka multi-select) select field allows a set of pre-defined values to be stored in GraceBlocks. Use the multiple select field to allow users to pick one or more options from a list of values. For example, if you were tracking a candidate's job areas of interest tasks, you might have a Job Interests field that is multiple select with value options of Operations, IT, Engineering, Product Management, Sales, Marketing, Finance, and Human Resources. To configure this type of Job Interests field, a builder must choose the Muliple select field type when managing fields.

This article reviews the properties of multiple select fields and provides tips to aid in user adoption of this type of field.

You can view the available properties for multiple select fields on the Edit field properties modal when you select Field type of Multiple select.



Properties of Multiple select fields




After specifying a Field name (which controls how this field is referenced inside the tab) and that the field is of the type Multiple select, you need to enter the list of values for the multiple select field by following the steps outlined below.



Step Action Visual
1

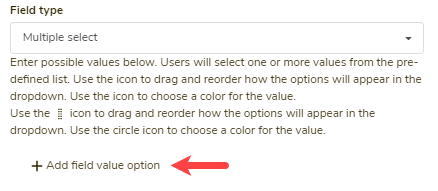

Click + Add field value option.

The field option entry field appears.

2

Enter the first value into the entry field, and then press Enter.

Every time you click enter a new entry field row will appear.

3

Continue entering values as needed and pressing pressing Enter until you have entered all values you want to include in the list.

4

A color is automatically assigned to the category. To choose your own color, click the color dropdown to the right of the value.

The color picker appears.

5

Confirm the color by picking a color bubble (1). If you would like a custom color (supported on paid plans only), enter the custom hex value into the hex value box (2).

6

Choose whether the text overlaying the bubble will be white or black by clicking the color bubble above the hex value. Each time you click the bubble, the text color toggles between white and black.

Black text selected White text selected
mceclip11.png mceclip10.png
7

Click Save inside the color modal to save the color option.

8

Repeat steps 3 - 7 until you have entered all values.


9

Click the trash can icon to remove items you have mistakenly added.

10

Click the text of any existing value to shift it back into edit mode so that you can edit the text of the value.

11

Use the drag icon to reorder items in the list.

12

Click Save on the Edit field properties page to save the multiple select field and all of its defined properties.




You can also configure additional properties, defined in the following table. Toggle on More field attributes to show the following options:



Property Description
Private field Use this setting if only authorized users should be able to access this field. If this is applied, the field will be locked out from the user's view entirely unless they are authorized to access private fields. This setting works in conjunction with the security access control tab setting: View private fields. If a field is private, only users authorized to view private fields will be able to view, edit, see history, filter, or download this data. Click here to learn more.
Alphabetize

Click this option to sort the list of values you have entered alphabetically.


🔔 If you enter new values, and you want them alphabetized, click this button after you have added all values.

Enable colors

If you do not want the value options to have colors, toggle this option to the off position. When this option is off, all values appear as dark text on white background.


Default text

If every row should have a value by default as soon as a record is created, specify the default value here. Users can change the value, but setting a default can help to minimize the number of null value records.

🔔The default value text entered must exactly match an option in the list of values.

Field callout

If you enter any text into the Field callout textbox, the information (i) icon appears to the left of the field name, and the text you entered displays when users move the cursor over this icon. Enter text here if you want to provide information to help the user learn more about how to use the field.




Important notes

🔔 If you have a long list of values, consider making a new tab for the values and creating a relational field instead.

🔔 If a data-conversion impact can occur during a field type change to or from a multiple select field, a warning message accompanies the field-conversion process to ensure that the builder understands what to expect. It's important to read these messages carefully. Users must follow the instructions provided on the warning page to complete field change transactions.
